Engineered 1x0.5m Panels & Semi-Finished Polymers
Precision-machined sheets, cast nylon structural blocks, and custom modular composite components ready for global port export.
The 1x0.5m Metric Panel Architecture: Industrial Landscape
In modern heavy mechanical assembly, structural containment, and architectural engineering, the 1000mm x 500mm (1x0.5m) aspect ratio has evolved into an essential international standard for weight optimization and modulus stability.
Mechanical Modularity & Ergonomics
A standard 1x0.5m footprint allows a single technician or automated robotic arm to maneuver, orient, and bolt panels without hydraulic lifting rigging. Across offshore docks, subterranean tunnels, and factory floors, this 2:1 ratio distributes torsional flexure symmetrically under hydraulic and geotechnical stress.
Material Diversification
Whether formulated with high-tensile Cast Nylon (PA6/MC), Ultra-High-Molecular-Weight Polyethylene (UHMWPE), high-density polyethylene (HDPE), or hot-compression GRP/FRP composite, 1x0.5m panels deliver targeted dielectric insulation, cryogenic abrasion resistance, and chemical containment.
Thermal Expansion Control
Large monolithic panels (e.g., 2000x1000mm) frequently fail from buckling under thermal cycling. The 1000x500mm profile features smaller contiguous thermal gradients, preventing thermal warp when anchored on structural steel trusses or marine pilings exposed to continuous UV.
Comprehensive Polymer & Composite Comparison
Selecting the appropriate 1x0.5m panel substrate requires balancing molecular molecular weight, yield strength, coefficient of linear thermal expansion (CLTE), and corrosion resistance.
| Polymer Variant | Tensile Strength (MPa) | Shore Hardness / Density | Water Absorption (24h) | Typical Industrial Mission |
|---|---|---|---|---|
| MC Cast Nylon (PA6/PA66) | 78 - 85 MPa | Shore D 82 | 1.15 g/cm³ | < 0.9% (at 23°C) | Machined guide ways, piling hammer cushions, heavy gear blanks, wear plates |
| UHMWPE-1000 (Ultra-High PE) | 38 - 45 MPa | Shore D 66 | 0.94 g/cm³ | < 0.01% (Impermeable) | Harbor fender facing, hopper liners, low-friction chute lining, slurry wear components |
| HDPE Grade 500 | 28 - 32 MPa | Shore D 63 | 0.96 g/cm³ | < 0.01% | Marine retaining walls, food processing prep boards, chemical drainage, storage partitions |
| SMC / GRP / FRP Composite | 110 - 130 MPa | Barcol 60 | 1.85 g/cm³ | < 0.15% | Modular water reservoir wall sections, electrical isolator enclosures, fire-rated utility baffles |
| Virgin POM (Polyacetal/Acetal) | 65 - 72 MPa | Rockwell M88 | 1.41 g/cm³ | < 0.2% | High-precision sliding blocks, fine tolerance micro-fluidic manifolds, zero-backlash inserts |
Localized Application Scenarios & Case Studies
Where do certified 1x0.5m panels outperform conventional mild steel, vulcanized rubber, and untreated timber on the field?
Heavy Construction Piling
High-elasticity MC Cast Nylon 1000x500mm shock blocks absorb massive repeated concussive shocks in hydraulic piling hammers without splintering, protecting expensive steel pile heads from explosive fracture.
Mining Hoppers & Chutes
Bolted with countersunk stainless studs, 1x0.5m UHMWPE panels eliminate bulk coal, quartz, and cement cake accumulation. Their near-zero dynamic friction prevents hopper arching and downtime.
Modular Water Storage Tanks
Hydraulically pressed FRP/GRP 1x0.5m panels serve as perimeter height extension panels in modular potable and firefighting water storage systems, ensuring zero galvanic corrosion over 30 years.
Automated Logistics & Sorting
High-speed distribution depots deploy 1x0.5m wear-resistant sliding beds under tilt-tray and cross-belt sorters. Self-lubricating characteristics diminish acoustic noise and conserve line power.
Manufacturing Technology Roadmap & Sustainable Future
As environmental carbon compliance tightens, the polymer panel sector is shifting rapidly from legacy batch processes toward intelligent closed-loop polymer fabrication.
1. Nanocomposite Infiltration
Integrating graphene oxide and carbon nanotube fillers into nylon caprolactam monomer rings prior to polymerisation boosts tensile modulus above 100 MPa while minimizing moisture swelling down to 0.3%.
2. In-Line Annealing & Stress Relief
Internal crystal stresses trigger panel deformation during rapid end-user CNC routing. Our modern multi-stage isothermal oil tempering tanks release residual core tension, guaranteeing planar flatness over long shipping runs.
3. Circular Scrap Reclaim Loops
All trimmings from our CNC cutting beds are segregated by resin grade and granulate purity. Reprocessed into high-grade composite matrix cores, this saves up to 38% embodied energy per ton of shipped panel.
Frequently Asked Technical Questions (FAQ)
Critical specifications, tolerances, and logistics considerations answered by our chemical engineers and export managers.
Additional Engineered Stock & Machine-Ready Shapes

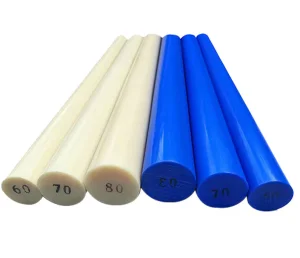

Explore our full line of round bars, hollow cylinders, and high-performance wear plates manufactured in Xinhe County, Hebei.
